PİSTON VİBRATORS, FP



Quiet and efficient, Nominal Frequency 1.800 - 9.500 rpm, Centrifugal force 30 - 6.150 N, Frequency and amplitude can be regulated, Can be used temperature up to 150 C, Resistance to extreme environmental conditions, Extremely low noice level.

Driving conveyor and discharge chutes, Loosening or compacting of bulk materials, Starting up of mechanical processes, Filling facilities

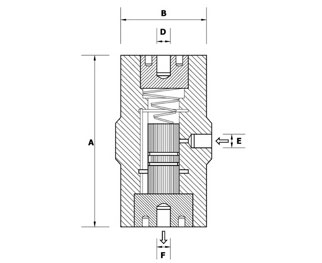

Model
Frequecy, rpm
Force-N
D, mm
D1, mm
L, mm
E, mm
E1, mm
F, mm
F1, mm
F2, kg
W, kg

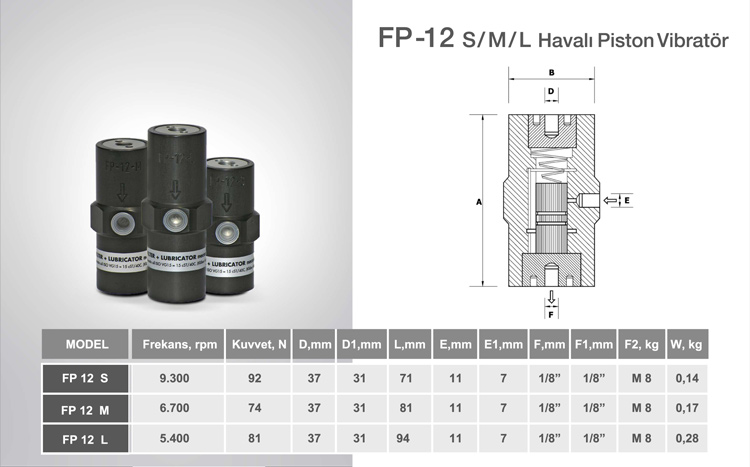

FP 12 S 9.300 92 37 31 71 11 7 1/8" 1/8" M 8 0,14
FP 12 M 6.700 74 37 31 81 11 7 1/8" 1/8" M 8 0,17
FP 12 L 5.400 81 37 31 94 11 7 1/8" 1/8" M 8 0,20

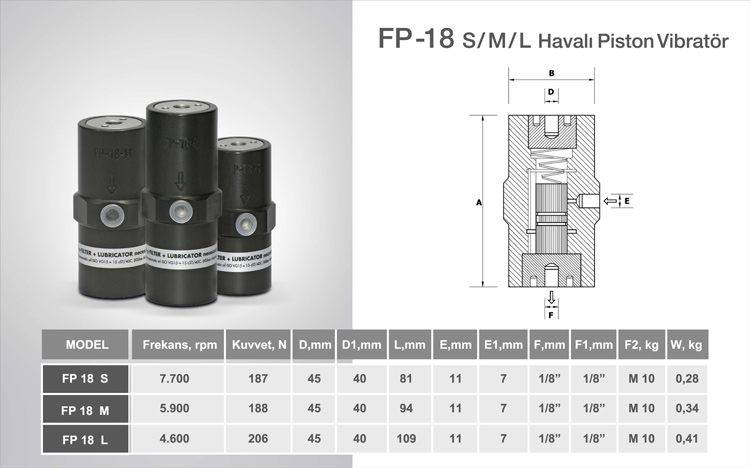

FP 18 S 7.700 187 45 40 81 11 7 1/8" 1/8" M 10 0,28
FP 18 M 5.900 188 45 40 94 11 7 1/8" 1/8" M 10 0,34
FP 18 L 4.600 206 45 40 109 11 7 1/8" 1/8" M 10 0,41

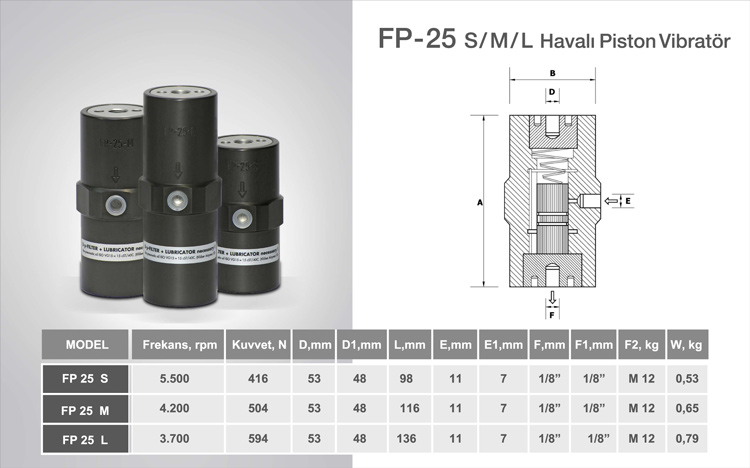

F 25 S 5.500 416 53 48 98 11 7 1/8" 1/8" M 12 0,53
FP 25 M 4.200 504 53 48 116 11 7 1/8" 1/8" M 12 0,65
FP 25 L 3.700 594 53 48 136 11 7 1/8" 1/8" M 12 0,79
FP 35 S 5.800 1.038 69 58 98 11 9 1/4" 1/4" M 12 0,84
FP 35 M 4.600 1.080 69 58 116 11 9 1/4" 1/4" M 12 1,04
FP 35 L 3.600 1.066 69 58 136 11 9 1/4" 1/4" M 12 1,28

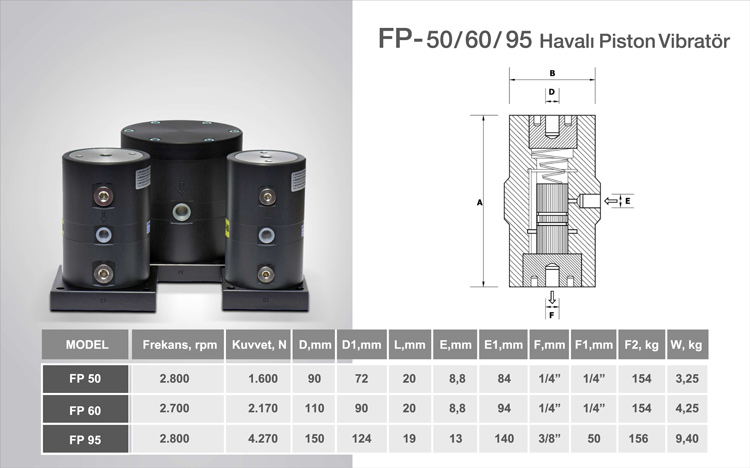

Model Frekans, rpm Kuvvet-N A, mm A1, mm B, mm C, mm D, mm F, mm F2, kg L, mm W, kg
FP 50 M 2.800 1.600 90 72 20 8,8 84 1/4" 1/4" 154 3,25
FP 60 M 2.700 2.170 110 90 20 8,8 94 1/4" 1/4" 154 4,25
FP 95 M 2.800 4.270 150 124 19 13 140 3/8"   156 9,40
