1000 rpm ELEKTRİKLİ VİBRATÖR



• Power supply: standart three-phase 230/400 V, 50 Hz
• Operation Temperature from -20 to +40
• Standart mechanical protection IP66,
• Motor size in aluminyum up to size LA included, in spheroidal cast iron for all other size
• Cover weights in stainless steel AISI 304 for all range
• Weight regulation system with gratuated indicator from 0 to 100 % of the CF
• Labyrinth system for grease seal: ensures correct and LONG LIFE lubrication
• However if is possible to grease again through special grease cups from size GA included
* Protection of the stator with VACUUM or DROP BY DROP system, Insulation Class F
* Thermistor PTC 130 C at request up to size LA, standard from size MA.



Model Force kg Moment kg mm Motor kw Current  A A, mm B, mm C, mm D, mm F, mm N, ad L, mm M mm W kg

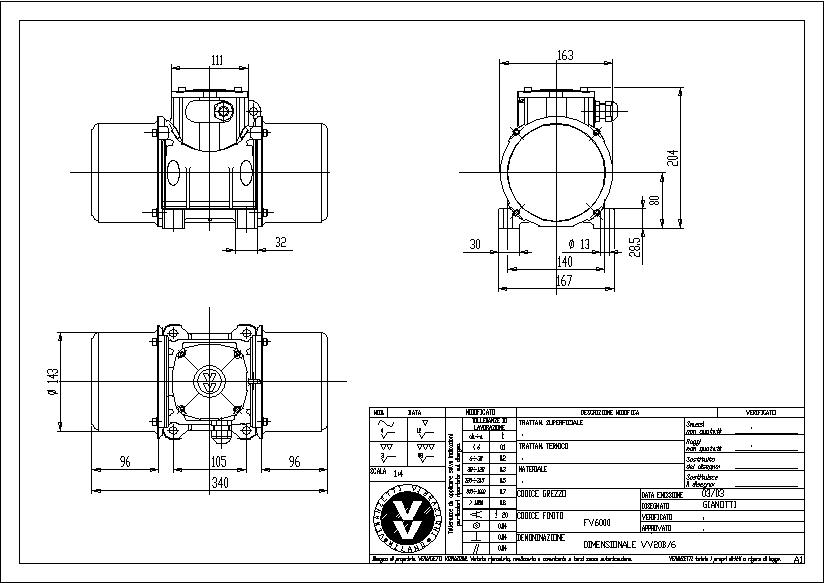

VV 20B/6 200 179 0,18 0,48 105 140 340 167 13 4 204 163 19

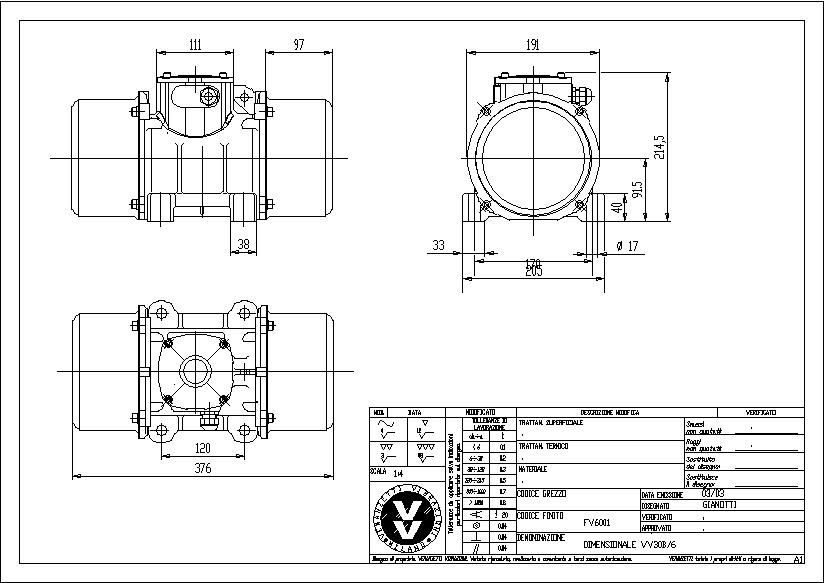

VV 30B/6 300 268 0,33 0,68 120 170 376 205 17 4 215 191 23

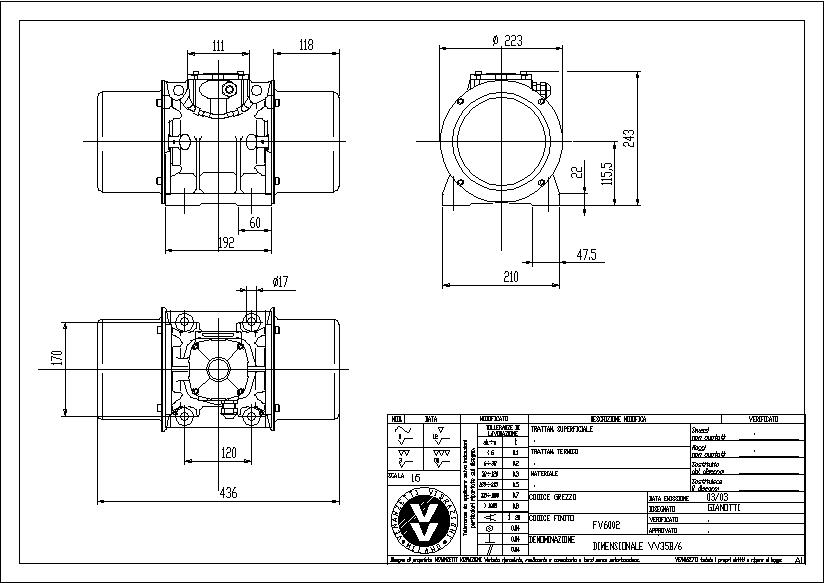

VV 35B/6 500 446 0,33 0,71 120 170 436 210 17 4 243 223 47

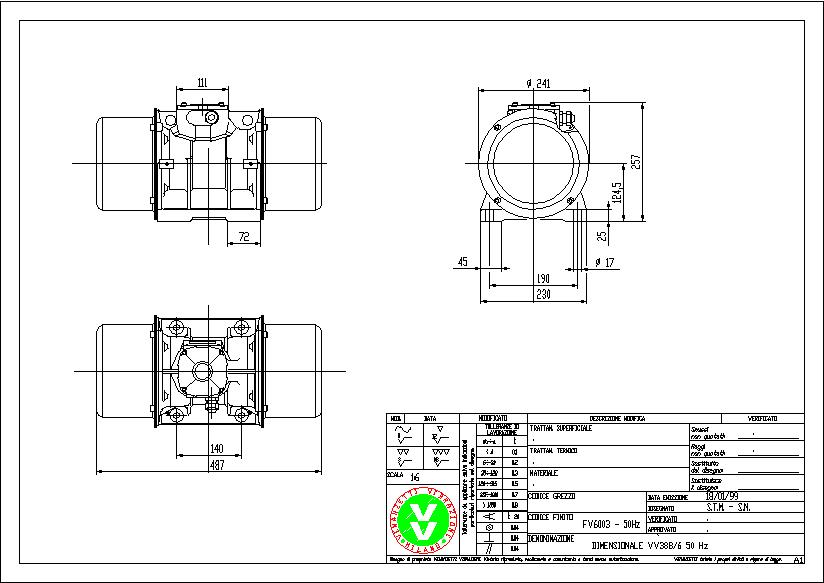

VV 38B/6 800 714 0,64 1,30 140 190 486 230 17 4 257 241 60

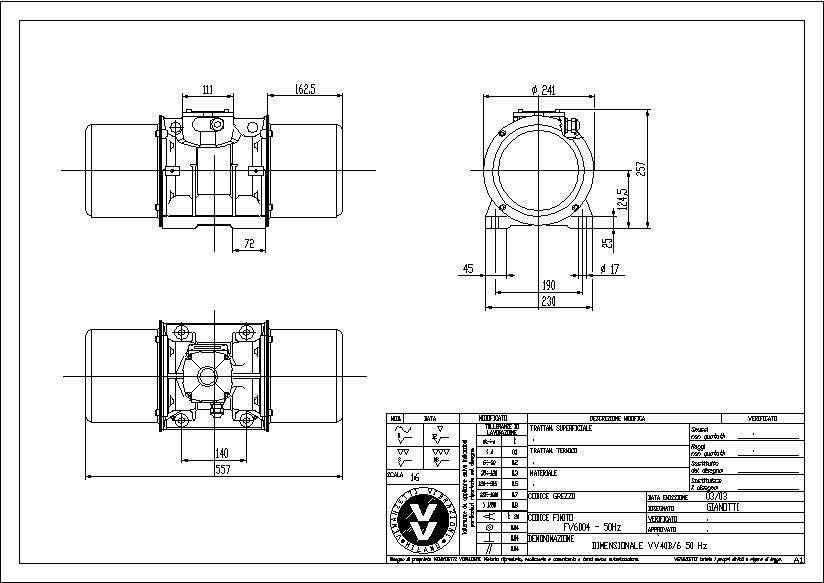

VV 40B/6 1.100 982 0,71 1,60 140 190 557 230 17 4 257 241 70
VV 41B/6 1.500 1.339 0,90 2,00 140 190 557 230 17 4 257 241 81

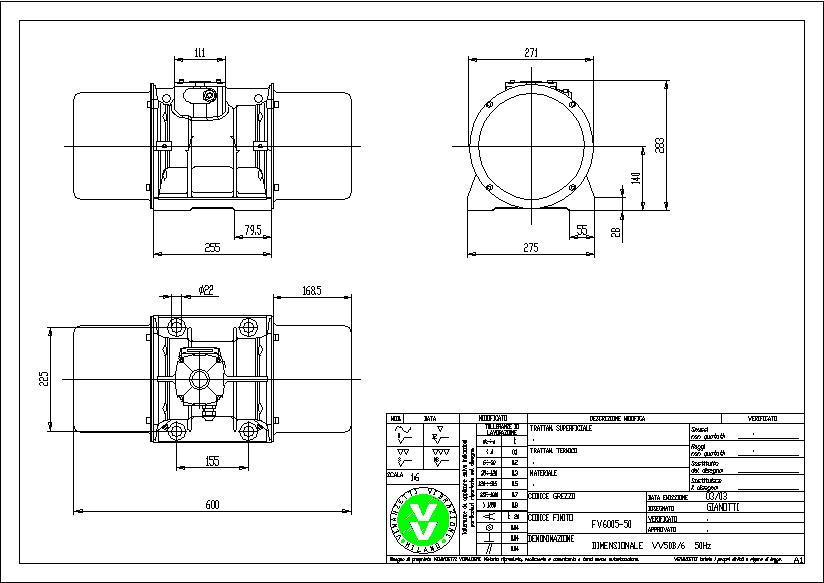

VV 50B/6 1.700 1.518 1,00 2,10 155 255 600 275 22 4 283 271 95
VV 53B/6 2.200 1.964 1,40 2,80 155 255 600 275 22 4 283 271 108

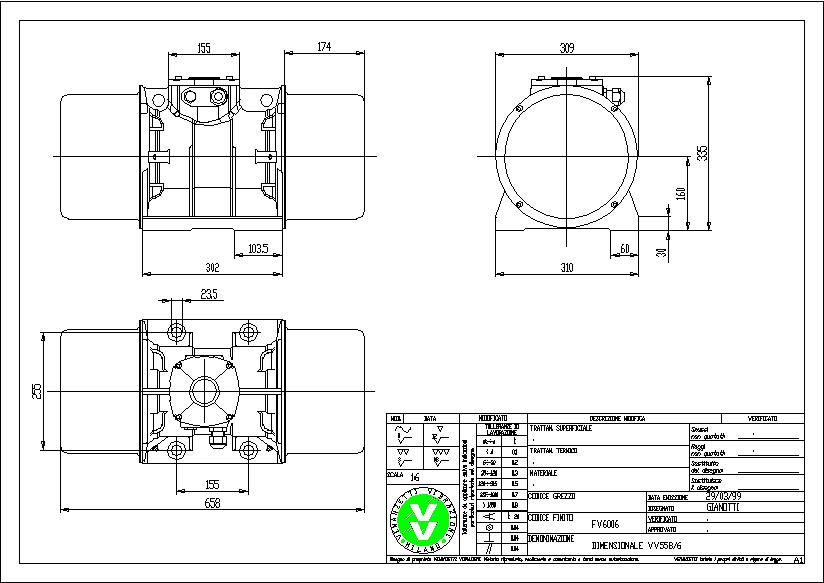

VV 55B/6 2.600 2.321 1,80 3,90 155 255 658 310 23 4 335 309 133

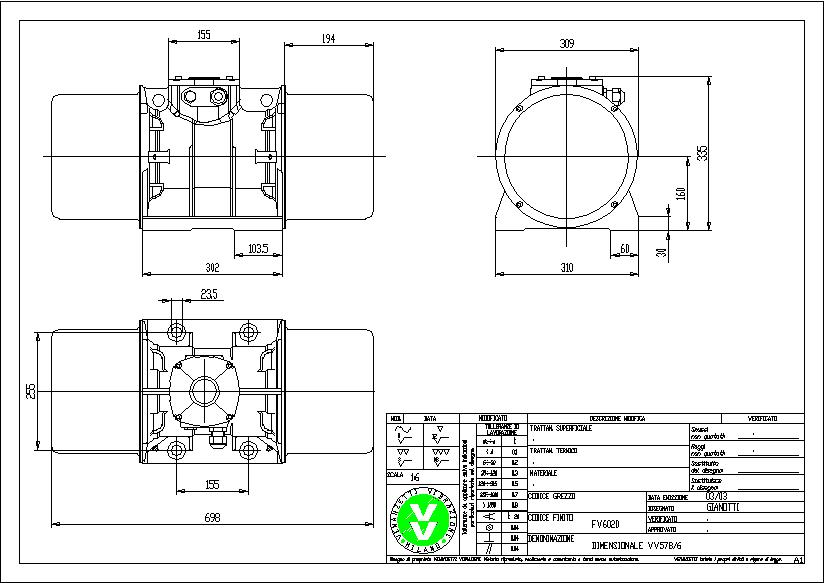

VV 57B/6 3.100 2.767 2,10 4,30 155 255 698 310 23 4 335 309 148

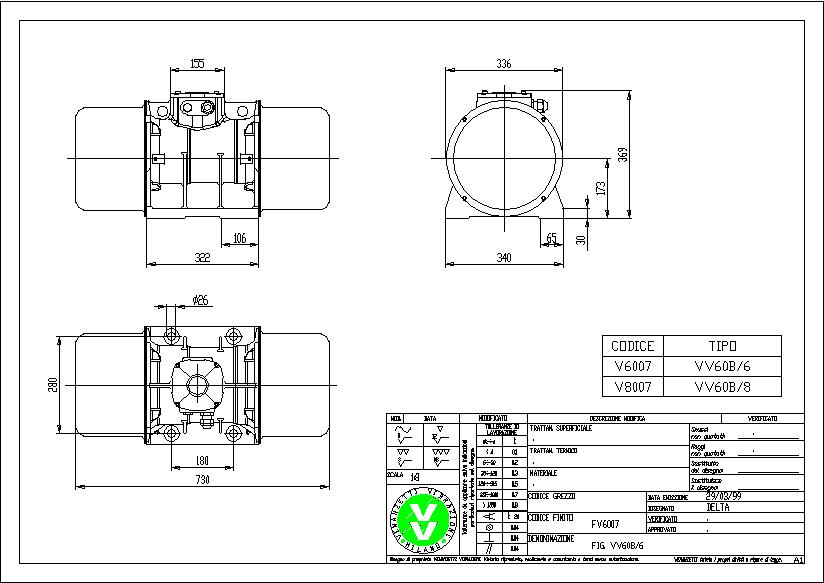

VV 60B/6 3.900 3.482 2,40 4,80 180 280 730 340 26 4 369 336 201

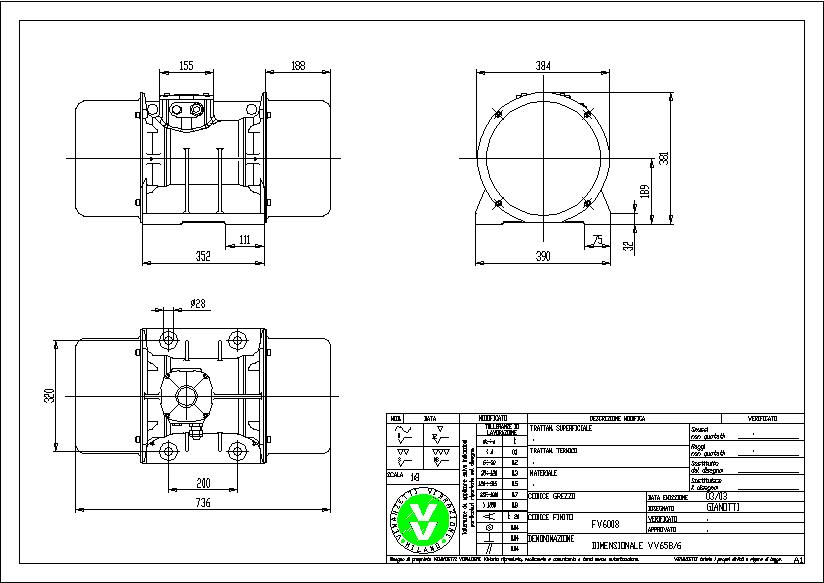

VV 65B/6 5.300 4.732 3,60 6,70 200 320 736 390 28 4 381 384 242

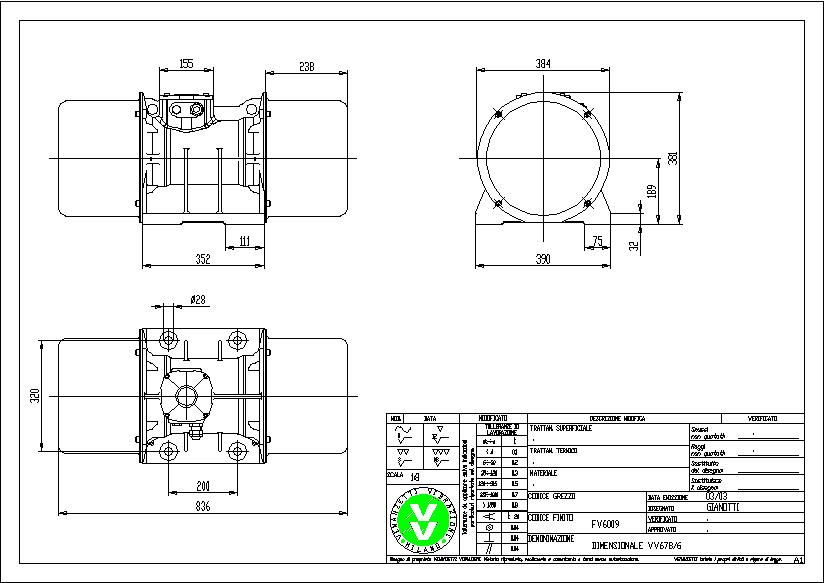

VV 67B/6 6.400 5.714 4,10 7,70 200 320 836 390 28 4 381 384 267
VV 71B/6 8.100 7.232 6,60 11,90 200 320 854 392 28 4 403 402 320

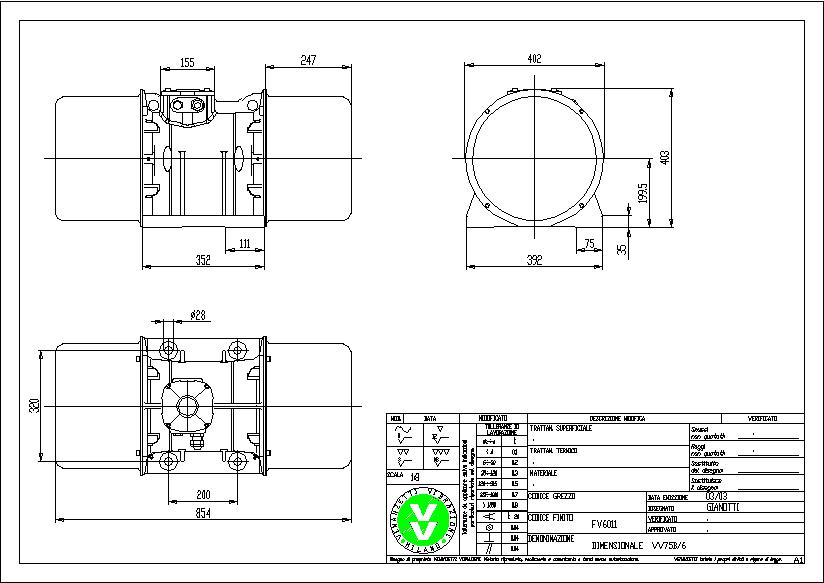

VV 75B/6 8.700 7.768 7,10 1,20 200 320 854 392 28 4 403 402 330

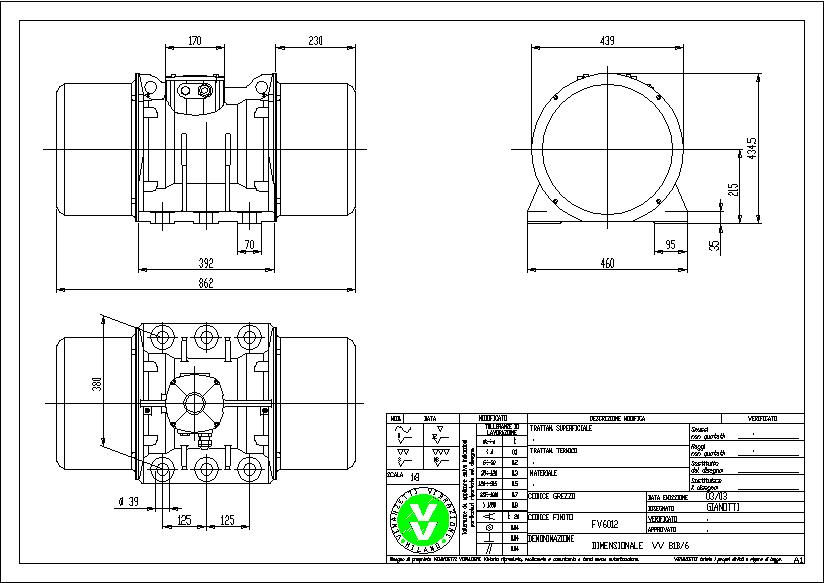

VV 81B/6 9.800 8.750 7,20 12,80 125 380 862 460 39 6 434 439 383

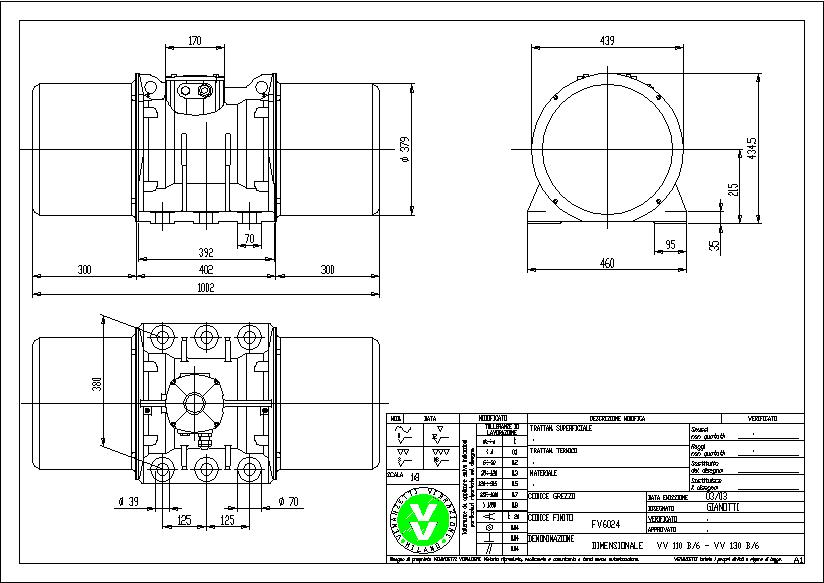

VV 110B/6 11.300 10.089 9,20 16,30 125 380 1002 460 39 6 434 439 402
VV 130B/6 13.000 11.607 9,20 16,30 125 380 1002 460 39 6 434 439 440
