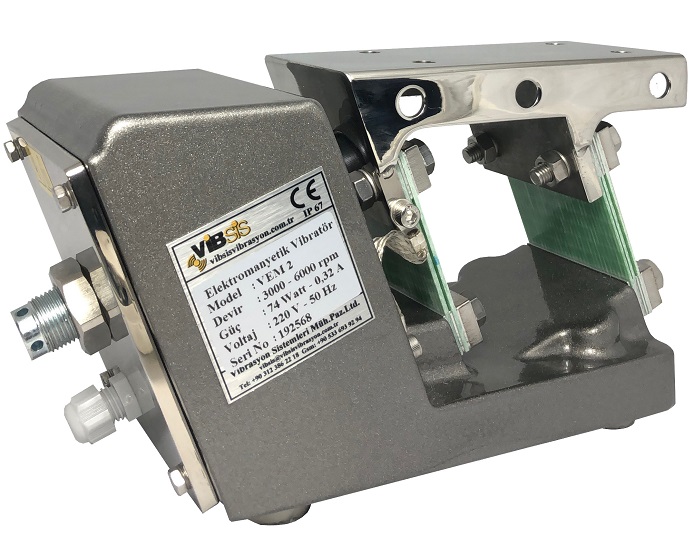

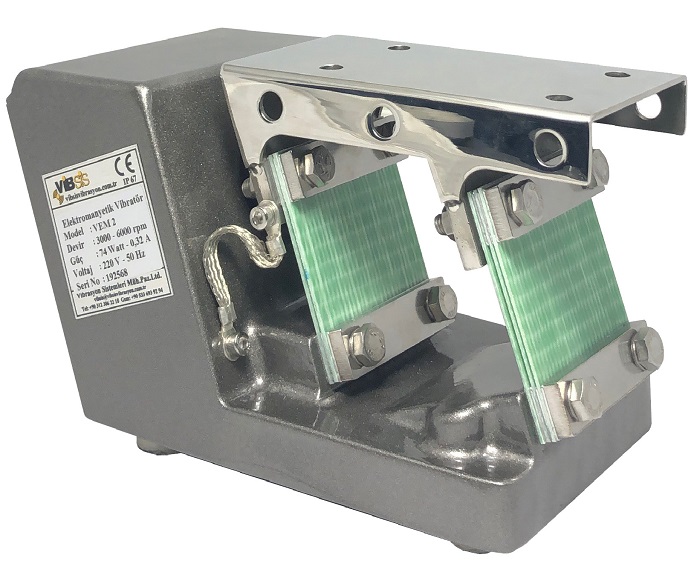

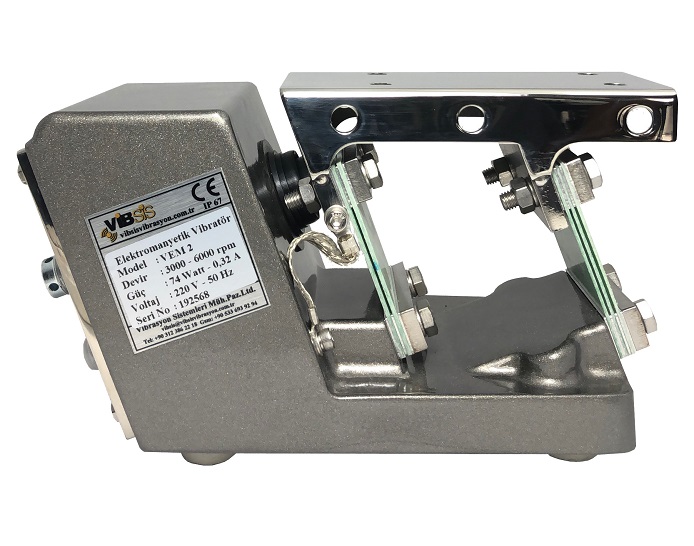

VEM2 ELECTROMAGNETIC VIBRATOR



The coil is the most important part of the electromagnetic vibrator. After completing the development of the coil, we now coat the coil to protect it from moisture and dust completely.

The efficiency of electromagnetic vibration  depends on the epoxy fiber spring quality. After researching,the test results showed that  maximum technical value are obtained with springs imported from the USA.

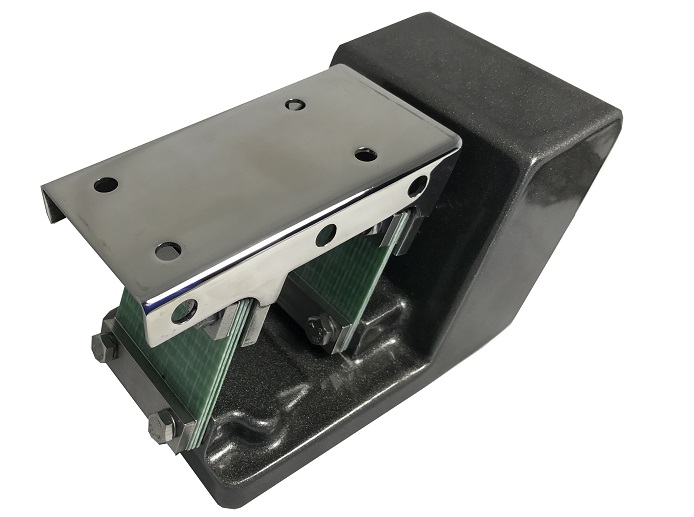

The welding of the trough components (for tray)  is another important development of our vibrators.

 Because of controlled atmosphere brazing, these parts do not deform over the trough and this welding system is our patent.

All the components of our products, except for the casting body, epoxy fiber spring and coil, are made of Stainless steel and  produced with a CNC machine in our workshop.

After the installation of the components, all the products are being tested before packaging.

Model
Power
VA
Capacity
t/h
Weight
kg
Voltaj
V-Hz
Current
A
Tray
Width
mm
Tray
Length
mm
Tray
Weight
kg
VEM 1 53 0,6 4,6 220-50 0,10 80 300 1,5
VEM 2 74 2 13,1 220-50 0,25 130 500 3
VEM 3 115 5 19,1 220-50 0,40 150 700 7,5
VEM 4 138 7 26,2 220-50 0,65 200 800 10
