PISTON VIBRATORS, FAL



Lubrication free, Quiet and efficient, Nominal Frequency 2.400 - 9.500 rpm, Centrifugal force 30 - 1.100 N, Frequency and amplitude can be regulated, Can be used temperature up to 150 C, Resistance to extreme environmental conditions, Extremely low noice level.

Foodstuffs and pharmaceuticals lubrication free version, Driving conveyor and discharge chutes, Loosening or compacting of bulk materials, Starting up of mechanical processes, Filling facilties

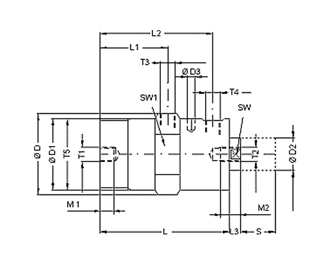

Model
Frequncy, rpm
Force-N
D, mm
D1, mm
D2, mm
L, mm
S mm
T1, mm
T2, mm
T3, kg
W, kg

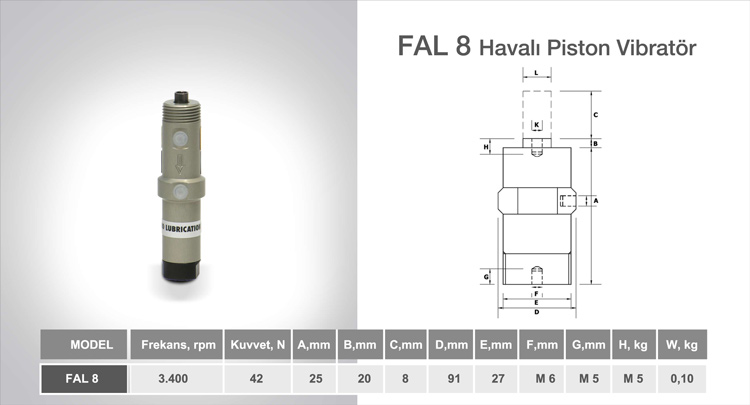

FAL 8 3.400 42 25 20 8 91 27 M 6 M 5 M5 0,10

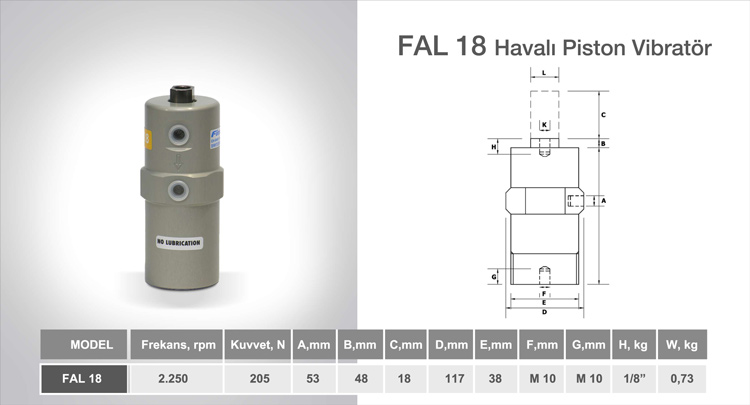

FAL 18 2.250 205 53 48 18 117 38 M 10 M 10 1/8" 0,73

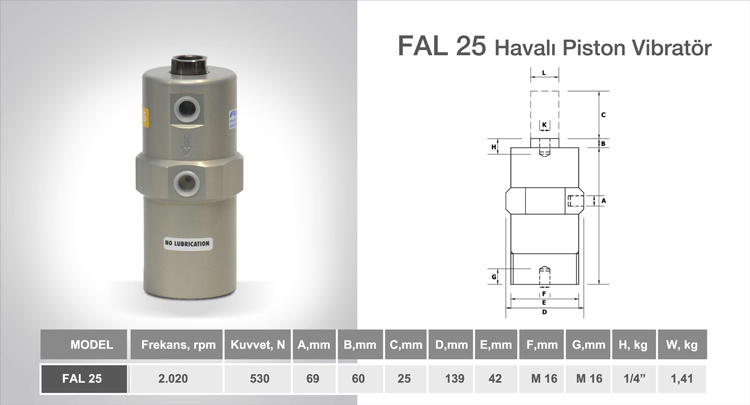

FAL 25 2.020 530 69 60 25 139 42 M 16 M 16 1/4" 1,41

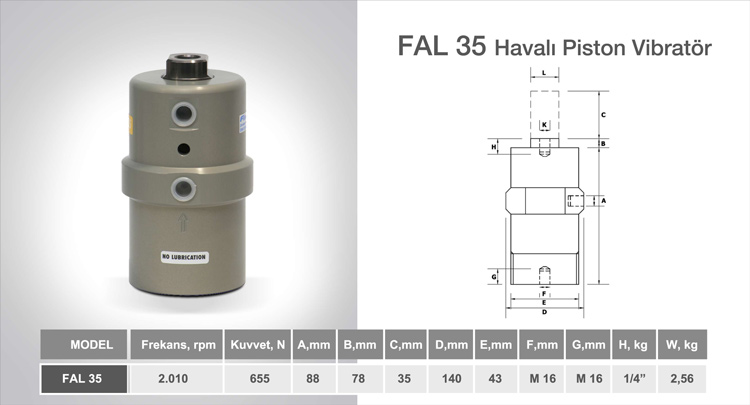

FAL35 2.010 655 88 78 35 140 43 M 16 M 16 1/4" 2,56
