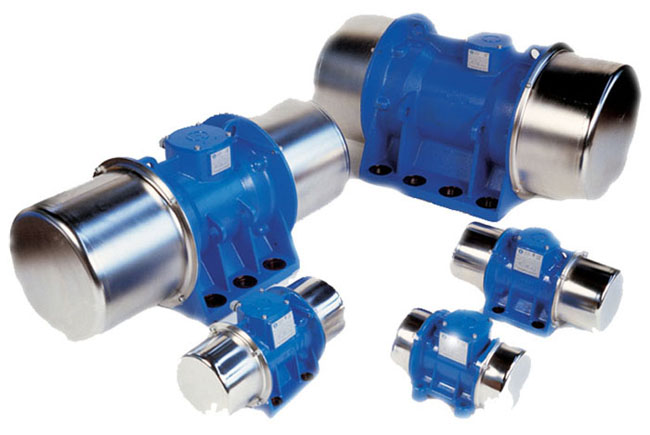

3000 rpm ELEKTRİKLİ VİBRATÖR



• Power supply: standart three-phase 230/400 V, 50 Hz
• Operation Temperature from -20 to +40
• Standart mechanical protection IP66,
• Motor size in aluminyum up to size LA included, in spheroidal cast iron for all other size
• Cover weights in stainless steel AISI 304 for all range
• Weight regulation system with gratuated indicator from 0 to 100 % of the CF
• Labyrinth system for grease seal: ensures correct and LONG LIFE lubrication
• However if is possible to grease again through special grease cups from size GA included
* Protection of the stator with VACUUM or DROP BY DROP system, Insulation Class F
* Thermistor PTC 130 C at request up to size LA, standard from size MA.



Model Force  kg Moment kg mm Motor kw Current  A A mm B mm C mm D mm F mm N ad M mm N mm W kg

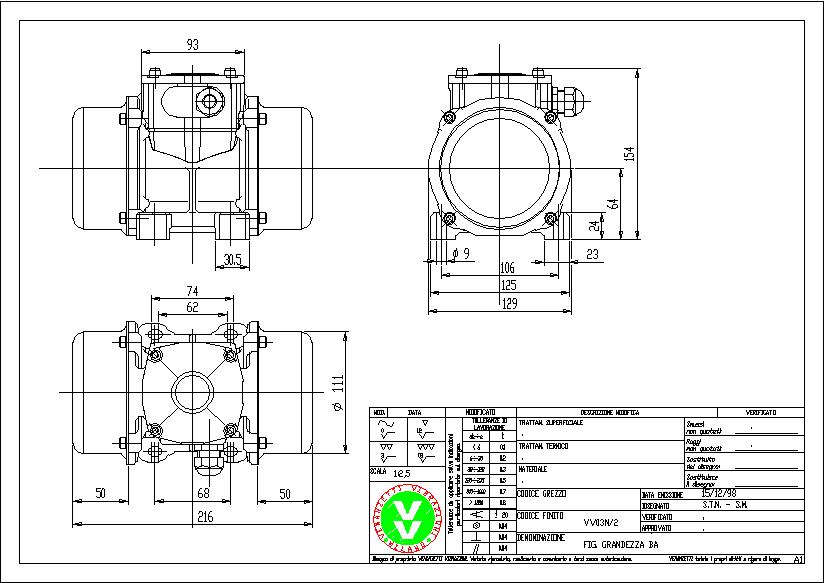

VV 03N/2 120 12 0,17 0,33 68 106 216 125 9 4 154 129 5,8
VV 05N/2 205 20 0,17 0,33 68 106 216 125 9 4 154 129 6,3

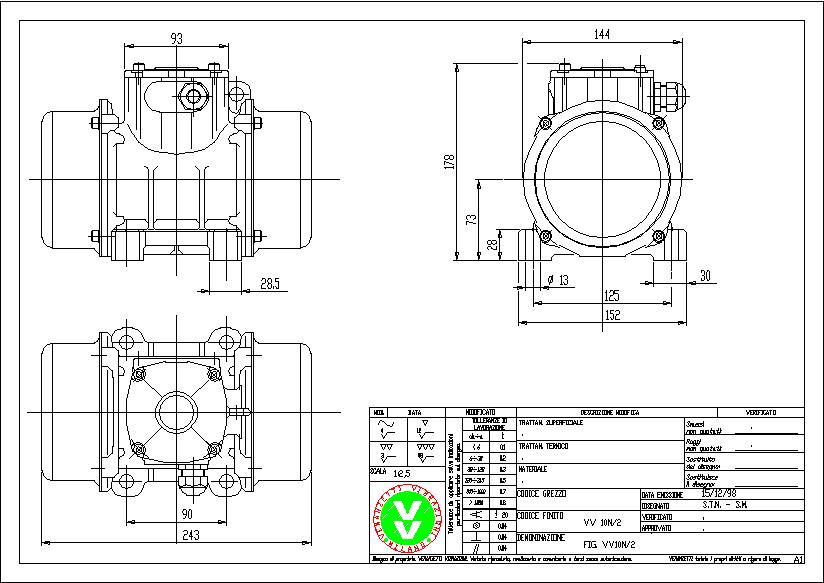

VV 10N/2 320 32 0,25 0,57 90 125 243 152 13 4 178 144 9,7

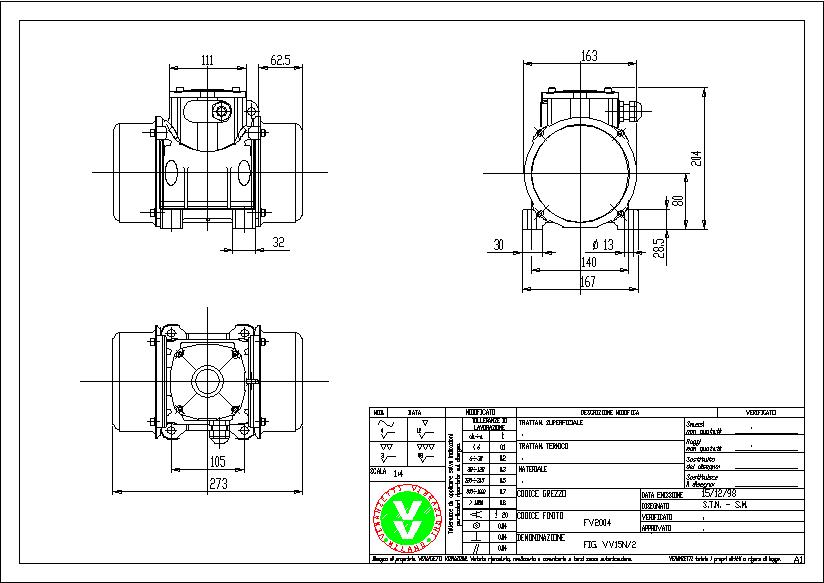

VV 15N/2 520 52 0,43 0,76 105 140 273 167 13 4 204 163 14,8

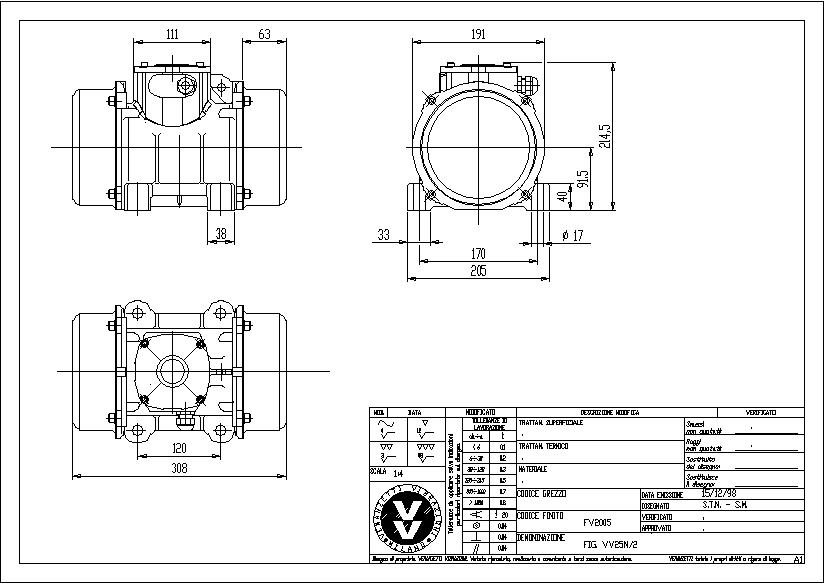

VV 25N/2 800 80 0,61 1,00 120 170 208 205 17 4 215 191 21

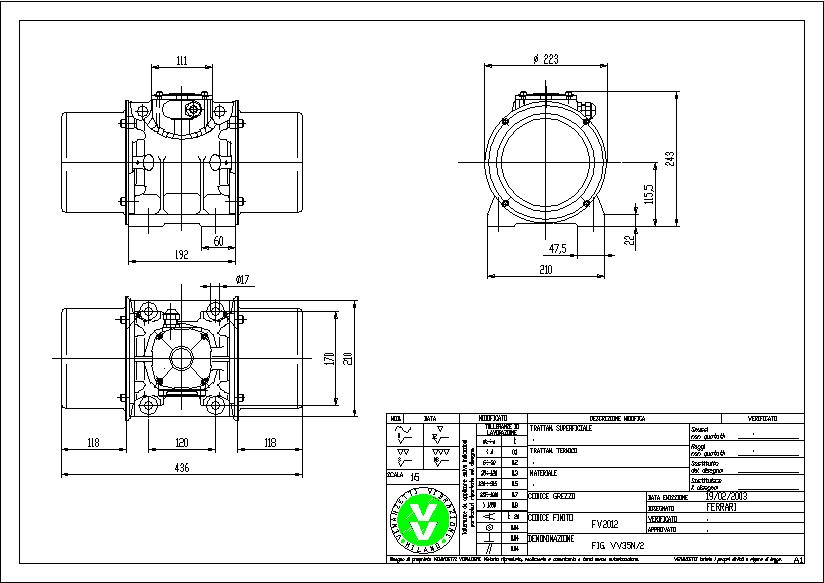

VV 35N/2 1.150 114 0,95 1,60 120 170 436 210 17 4 243 223 37

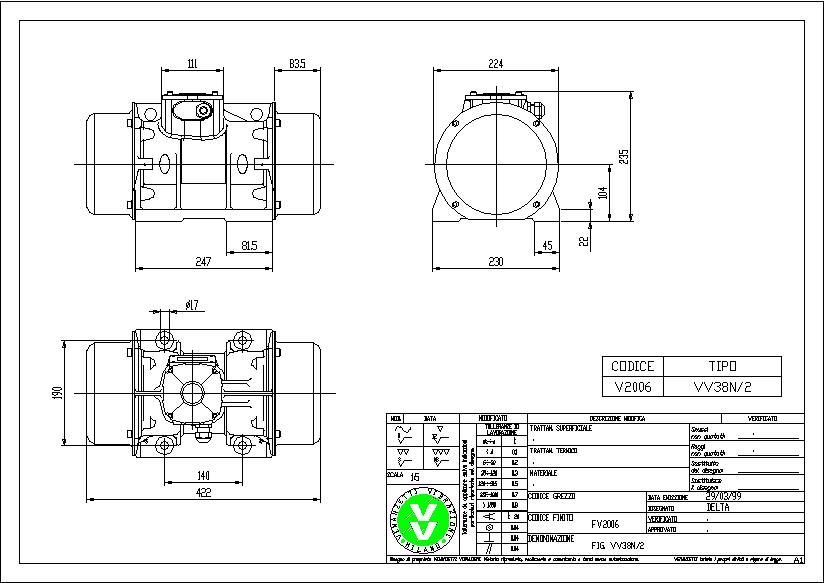

VV 38N/2 1.600 159 1,90 3,20 140 190 422 230 17 4 235 224 43
