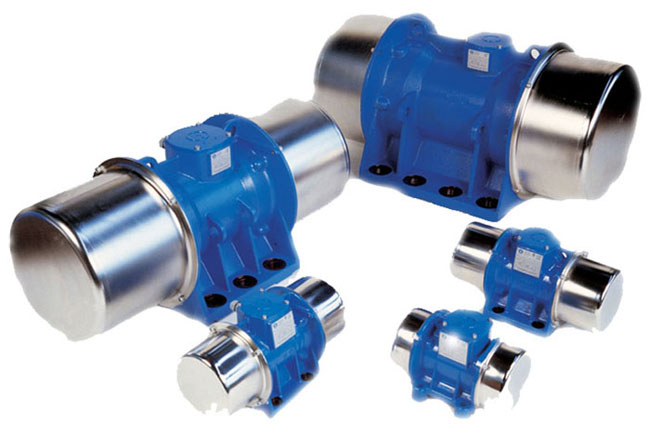

1500 rpm ELEKTRİKLİ VİBRATÖR



• Power supply: standart three-phase 230/400 V, 50 Hz
• Operation Temperature from -20 to +40
• Standart mechanical protection IP66,
• Motor size in aluminyum up to size LA included, in spheroidal cast iron for all other size
• Cover weights in stainless steel AISI 304 for all range
• Weight regulation system with gratuated indicator from 0 to 100 % of the CF
• Labyrinth system for grease seal: ensures correct and LONG LIFE lubrication
• However if is possible to grease again through special grease cups from size GA included
* Protection of the stator with VACUUM or DROP BY DROP system, Insulation Class F
* Thermistor PTC 130 C at request up to size LA, standard from size MA.



Model Force kg Moment kg mm Motor kw Current  A A, mm B, mm C, mm D, mm F, mm N, ad L, mm M mm W kg

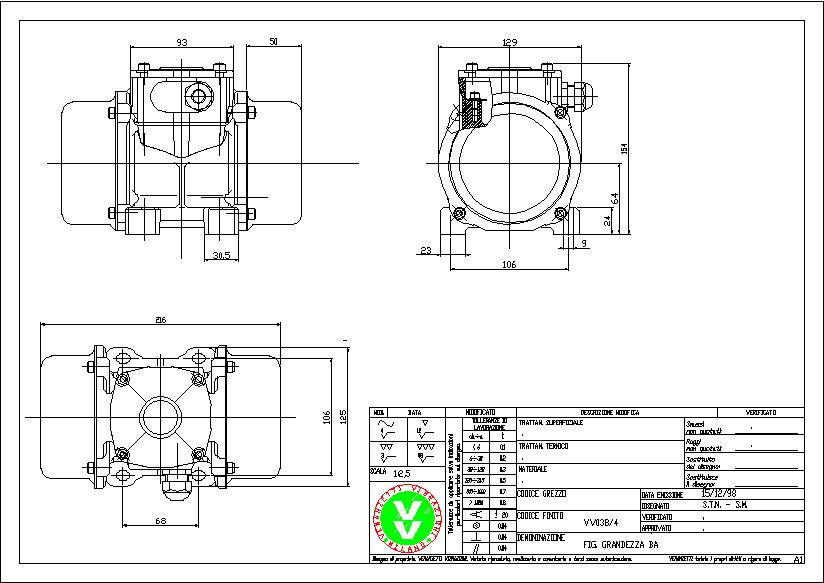

VV 03B/4 35 14 0,08 0,20 68 106 216 125 9 4 154 129 6,0
VV 05B/4 80 32 0,08 0,20 68 106 216 125 9 4 154 129 6,6

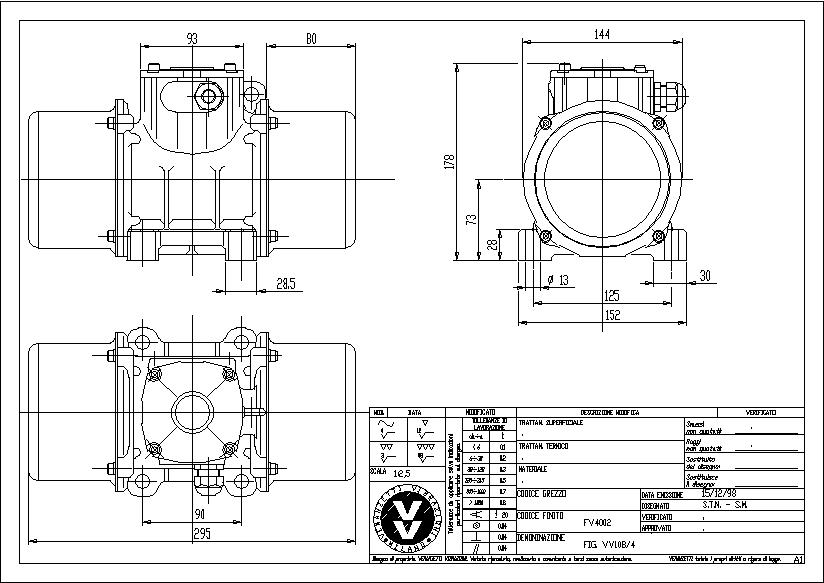

VV 10B/4 220 87 0,16 0,38 90 125 295 152 13 4 178 144 12,5

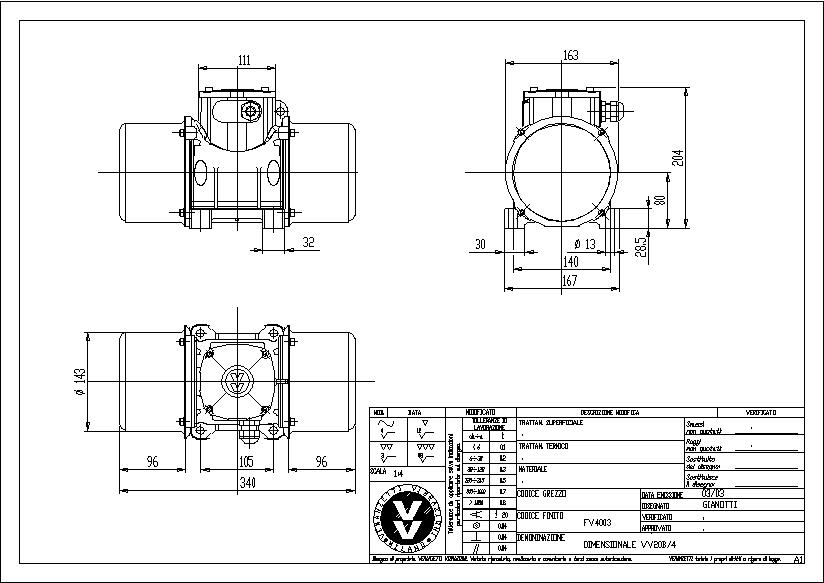

VV 20B/4 420 167 0,28 0,57 105 140 340 167 13 4 204 163 19

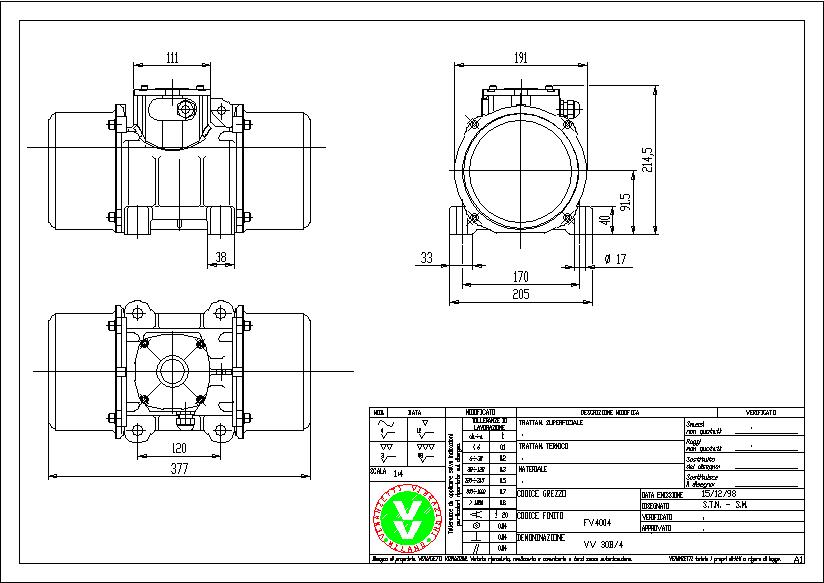

VV 30B/4 750 298 0,50 0,88 120 170 376 205 17 4 214 191 28

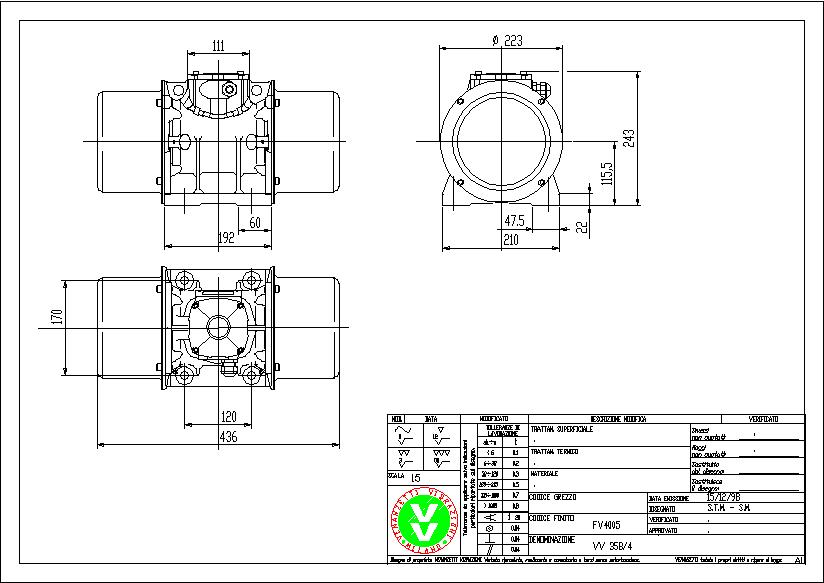

VV 35B/4 1.100 437 0,52 0,90 120 170 436 210 17 4 243 223 45,5

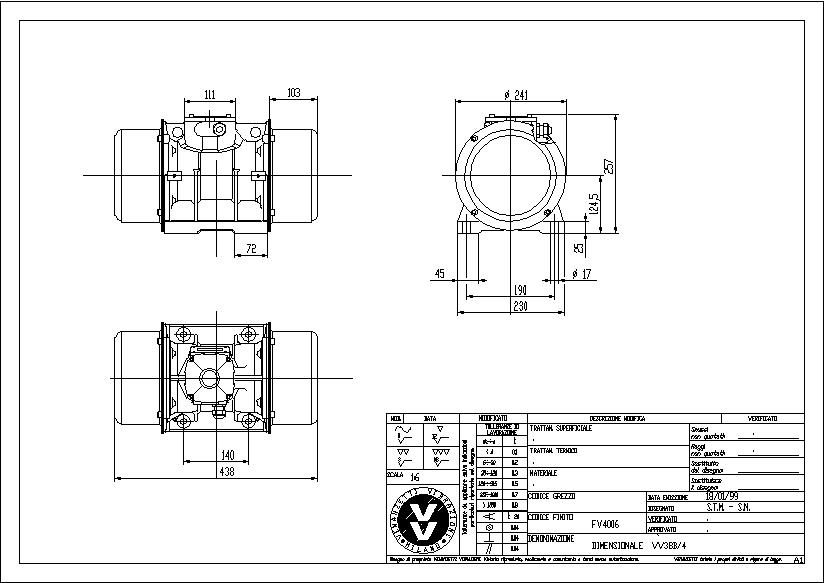

VV 38B/4 1.400 556 0,85 1,37 140 190 438 230 17 4 257 241 55

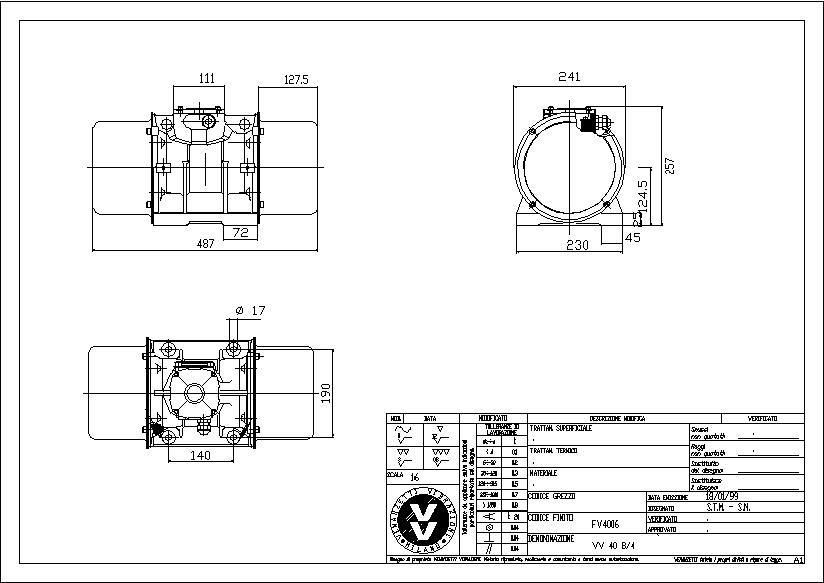

VV 40B/4 1.800 714 1,10 1,91 140 190 486 230 17 4 257 241 61

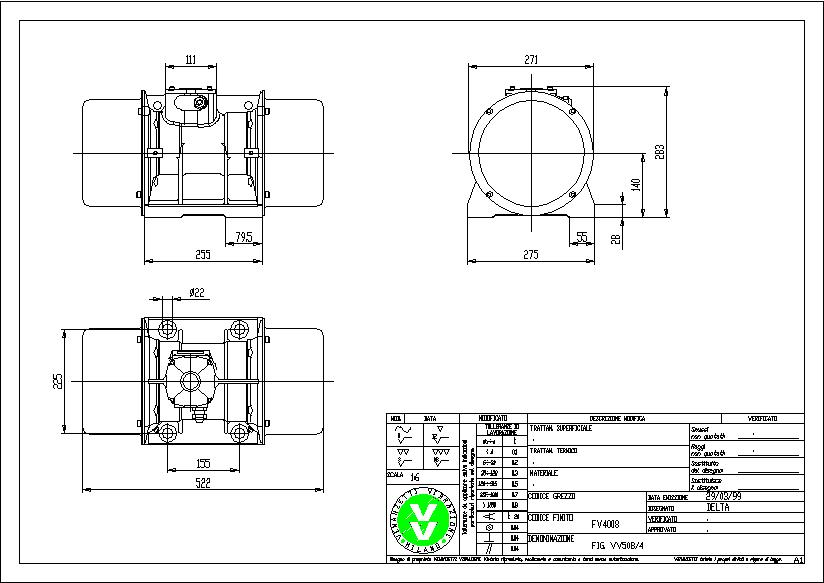

VV 50B/4 2.500 992 1,50 3,00 155 255 522 275 22 4 283 271 85

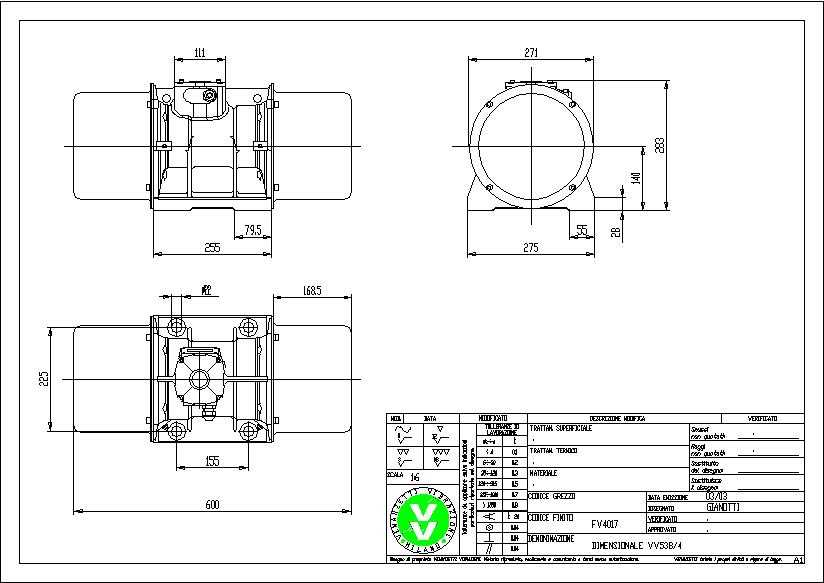

VV 53B/4 3.150 1.250 1,80 3,60 155 255 600 275 22 4 283 271 95

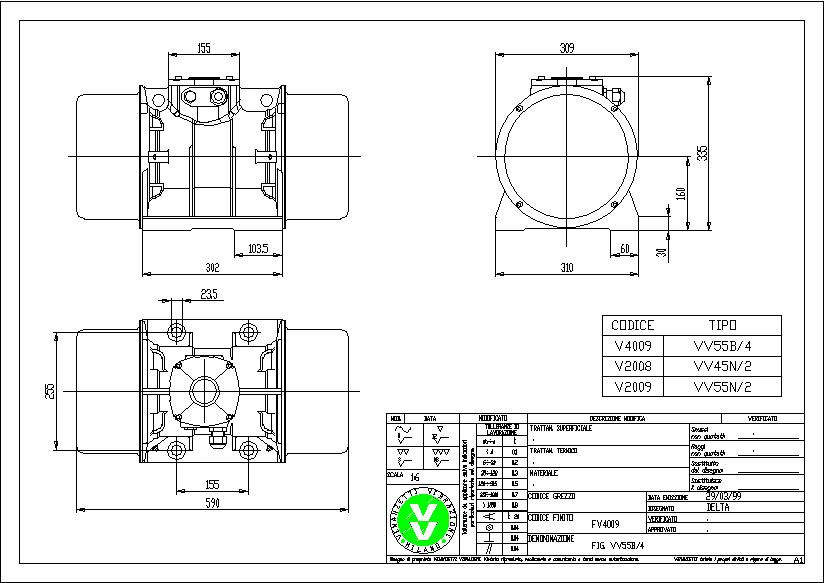

VV 55B/4 3.800 1.508 2,10 3,80 155 255 590 310 23 4 335 309 118
