BALL VİBRATORS, K



Powerful, Rated frequency 7.000 - 36.000 rpm, Centrifugal force 130 - 4.100 N, Continuosly variable, Can be used at up to 100 C,

Emptying of bunkers, Screen filters, Vibration table, Preventing adhesions in pipelines and silos, Movement of goods

Model
Frequecy, rpm
Force-N

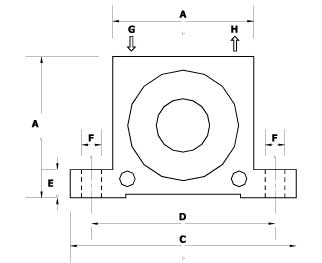

A, mm
B, mm
C, mm
D, mm
E, mm
F, mm
G, mm
H, kg
W, kg

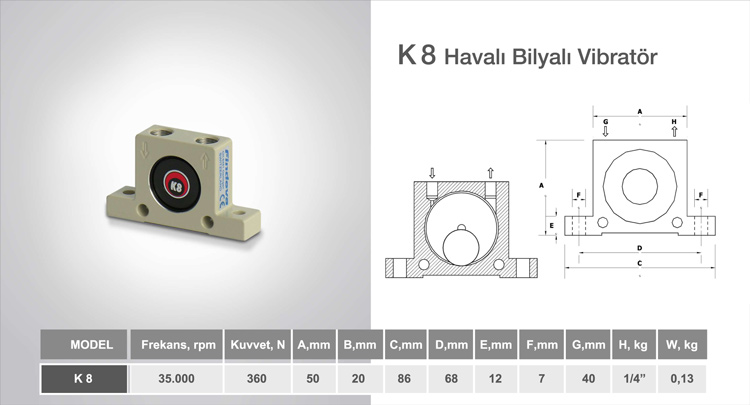

K 8 35.000 360 50 20 86 68 12 7 40 1/8" 0,13

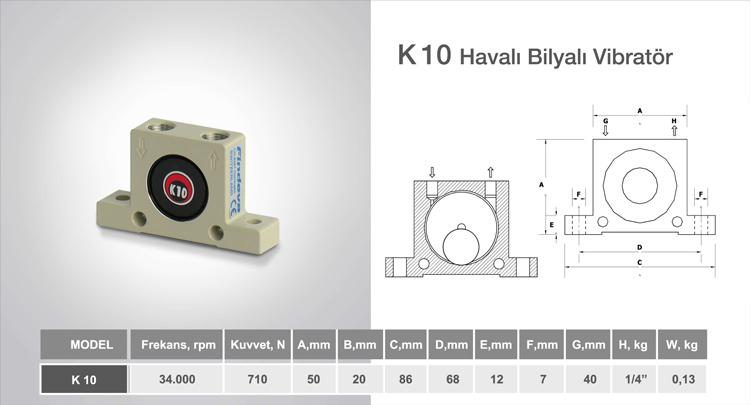

K 10 34.000 710 50 20 86 68 12 7 40 1/8" 0,13

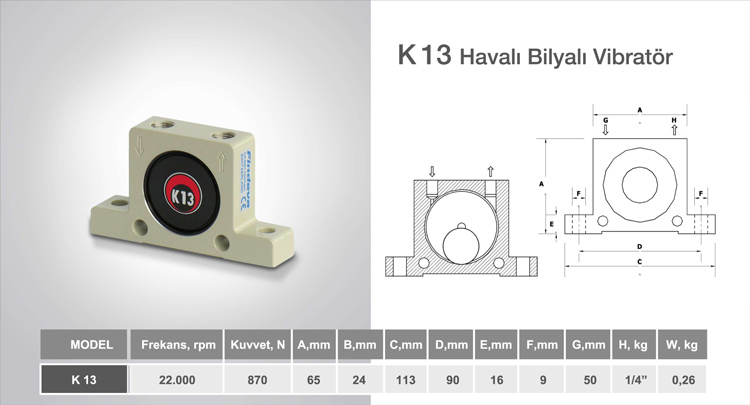

K 13 22.500 870 65 24 113 90 16 9 50 1/4" 0,26

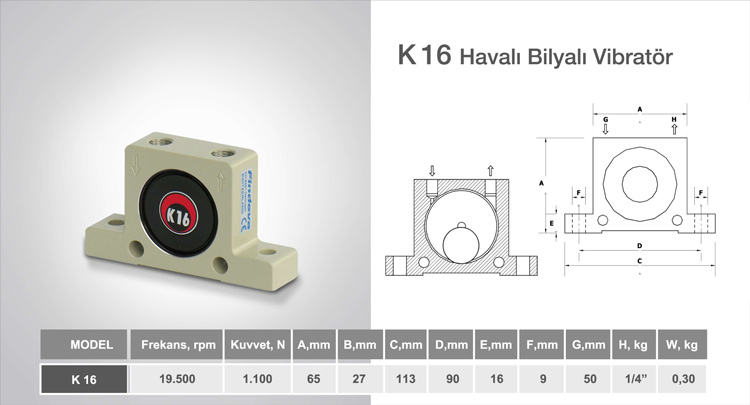

K 16 19.500 1.100 65 27 113 90 16 9 50 1/4" 0,30

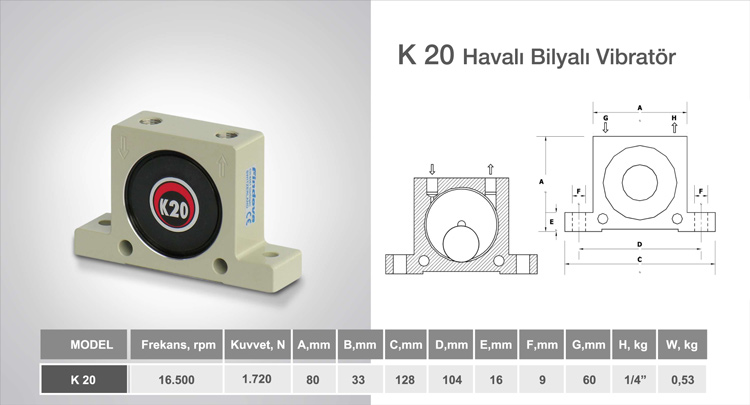

K 20 16.500 1.720 80 33 128 104 16 9 60 1/4" 0,53

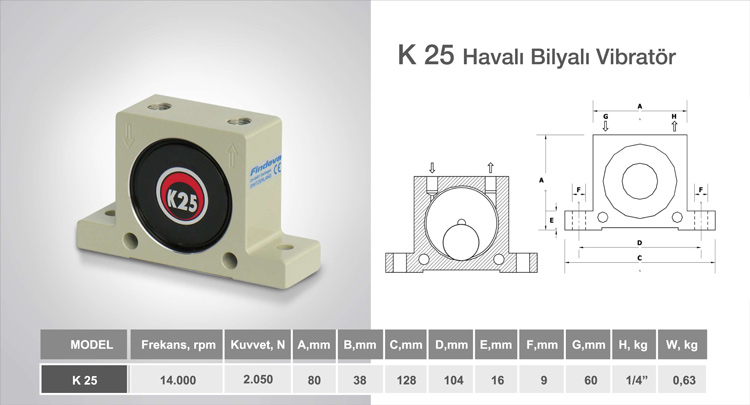

K 25 14.000 2.050 80 38 128 104 16 9 60 1/4" 0,63

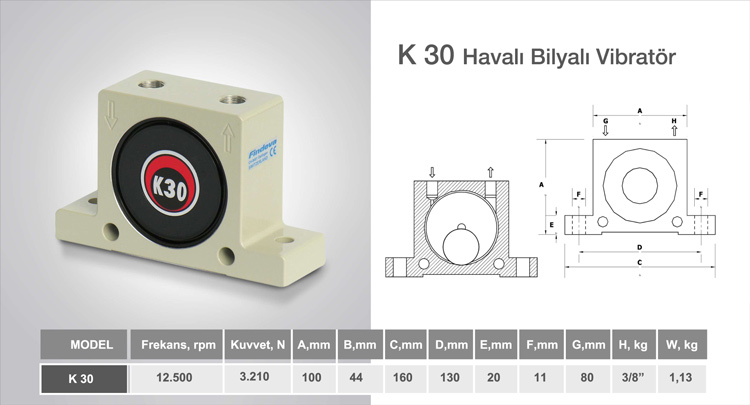

K 30 12.500 3.210 100 44 160 130 20 11 80 3/8" 1,13

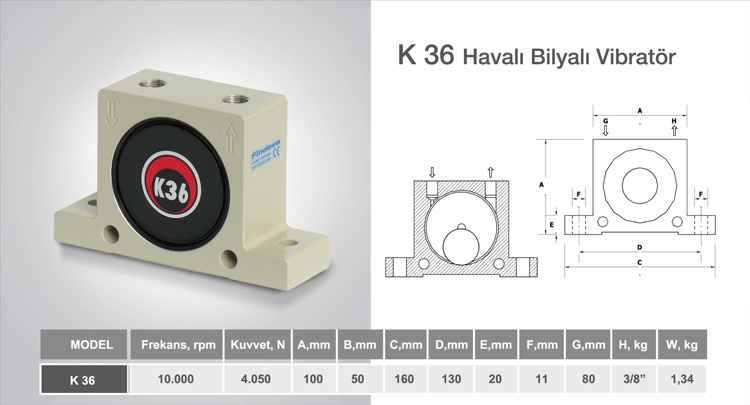

K 36 10.000 4.050 100 50 160 130 20 11 80 3/8" 1.34
