ROLLER VIBRATORS, DAR



High motive power, Rated frequecy 1.592 - 40.500 rpm, Centrifugal Force 1.600 - 10.300 N, Continuosly variable, Can be used at up 150 C, Resistance to extreme environmental conditions.

Compacting of plastic and concrete, Supporting the flow of material in silos and hoppers, Seperation of different sized products on sieves.

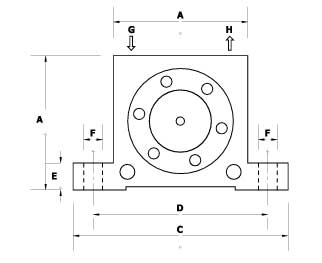

Model
Frequncy, rpm
Force-N
A, mm
B, mm
C, mm
D, mm
E, mm
F, mm
G, mm
H, kg
W, kg

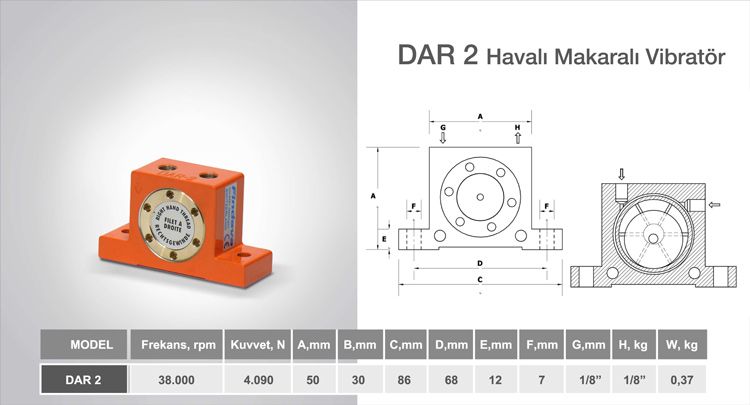

DAR 2 38.000 4.090 50 30 86 68 12 7 1/8" 1/8" 0,37

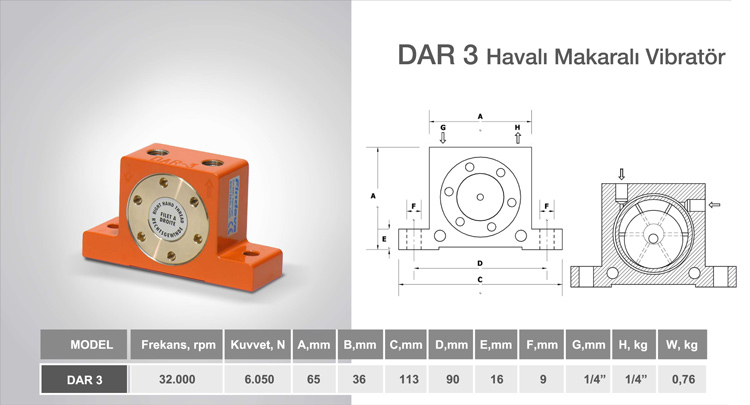

DAR 3 32.000 6.050 65 36 113 90 16 9 1/4" 1/4" 0,76

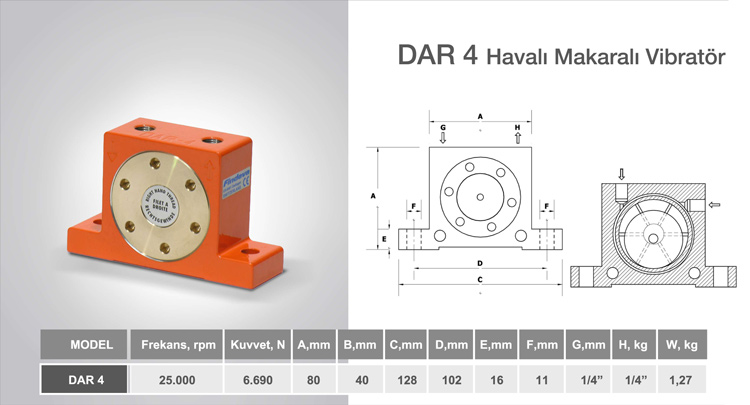

DAR 4 25.000 6.690 80 40 128 102 16 11 1/4" 1/4" 1,27

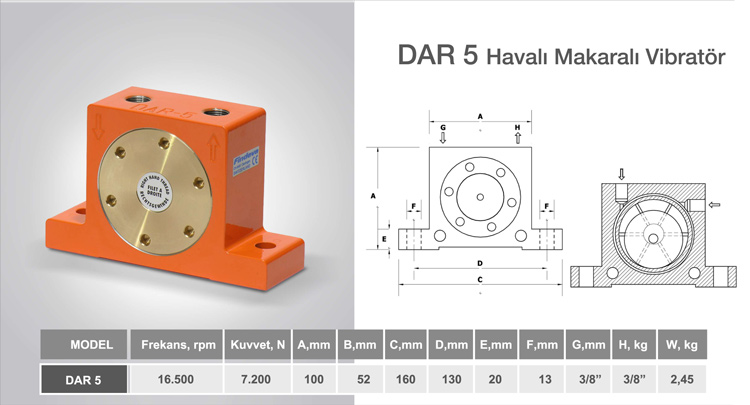

DAR 5 16.500 7.200 100 52 160 130 20 13 3/8" 3/8" 2,45

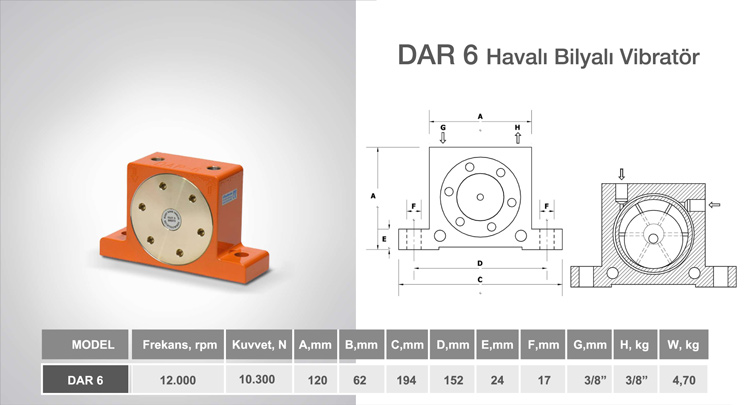

DAR 6 12.000 10.300 120 62 194 152 24 17 3/8" 3/8" 4,70

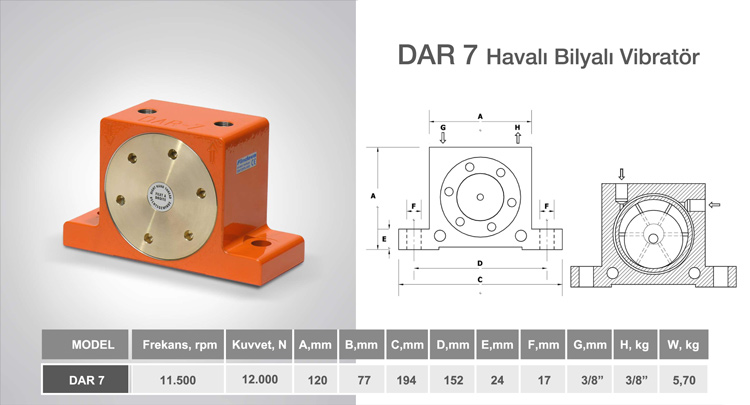

DAR 7 11.500 12.000 120 77 194 152 24 17 3/8" 3/8" 5,70
