GOLDEN VIBRATORS, GT



Lubrication free, Extremely quite, Strong vibration from high speed and eccentric working torques, Nominal frequecy 6.000 - 46.000 rpm, Centrifugal Force 500 - 12.000 N, Continuosly variable, Can be used at up 150 C, Resistance to extreme environmental conditions.

Bunker empting,  Screen filters, Vibraion table,  Preventing adhesions in pipelines and silos, Moving of bulk materials.

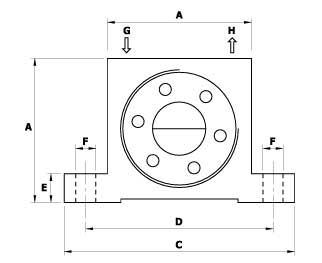

Model
Frequncy, rpm
Force-N
A, mm
B, mm
C, mm
D, mm
E, mm
F, mm
G, mm
H, kg
W, kg

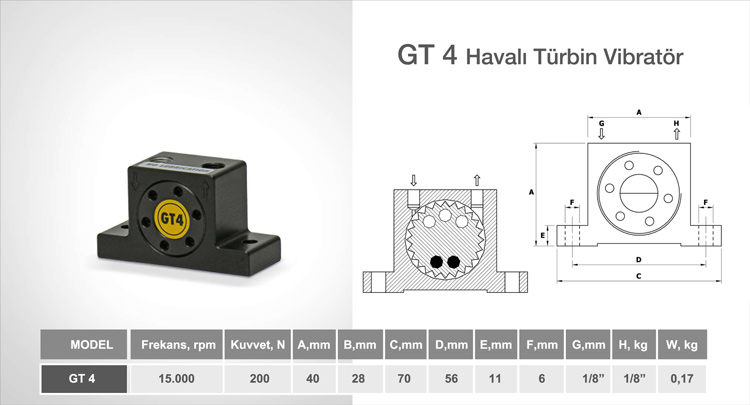

GT 4 15.000 200 40 28 70 56 11 6 1/8" 1/8" 0,17

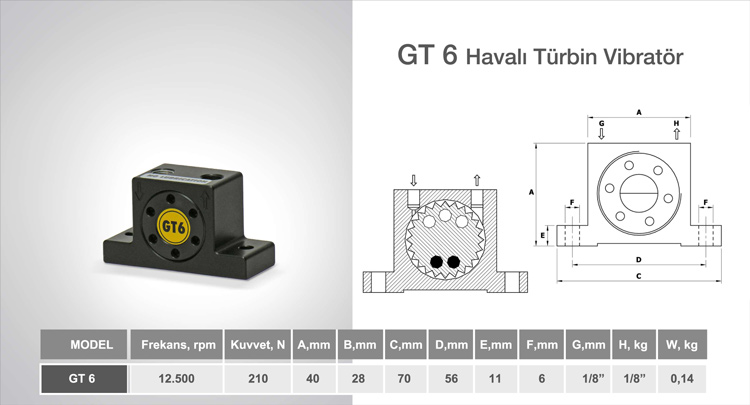

GT 6 12.500 210 40 28 70 56 11 6 1/8" 1/8" 0,14

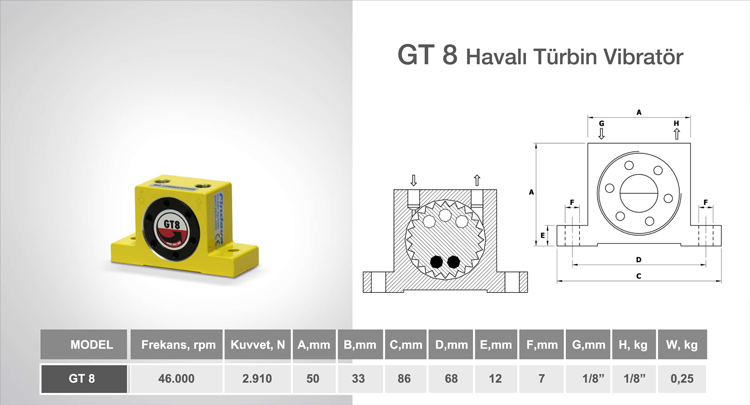

GT 8 46.000 2.910 50 33 86 68 12 7 1/8" 1/8" 0,25
GT 10 37.500 2.400 50 33 86 68 12 7 1/8" 1/8" 0,26

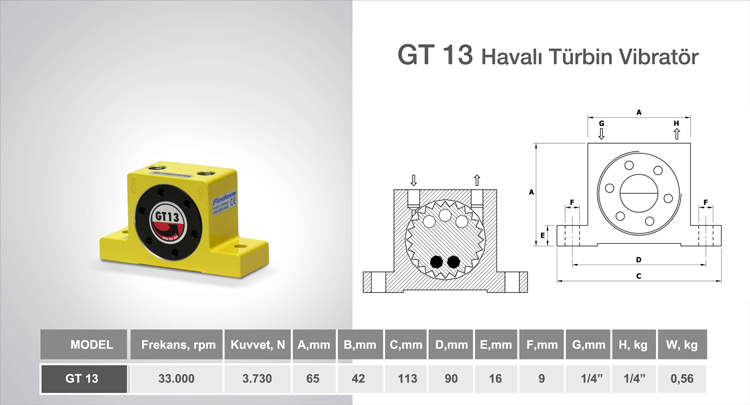

GT 13 33.000 3.730 65 42 113 90 16 9 1/4" 1/4" 0,56
GT 16 24.000 3.160 65 42 113 90 16 9 1/4" 1/4" 0,58

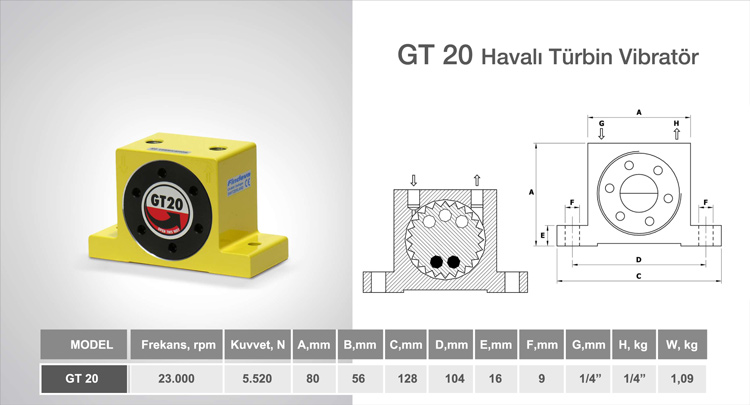

GT 20 23.000 5.520 80 56 128 104 16 9 1/4" 1/4" 1,09

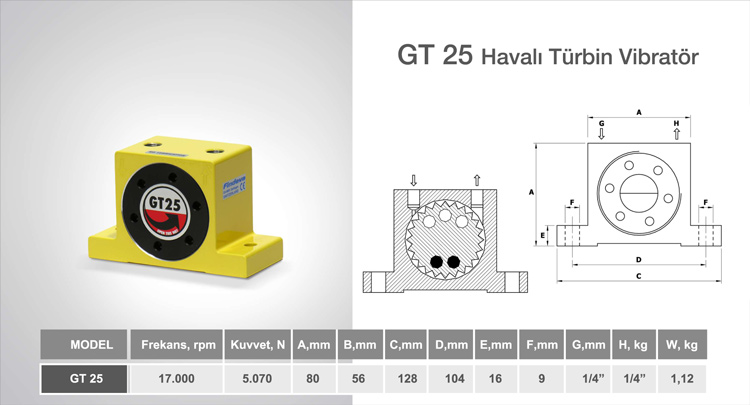

GT 25 17.000 5.070 80 56 128 104 16 9 1/4" 1/4" 1,12

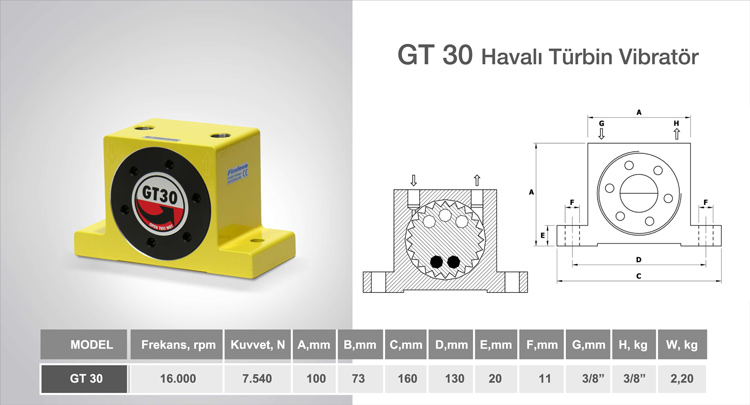

GT 30 16.000 7.540 100 73 160 130 20 11 3/8" 3/8" 2,20

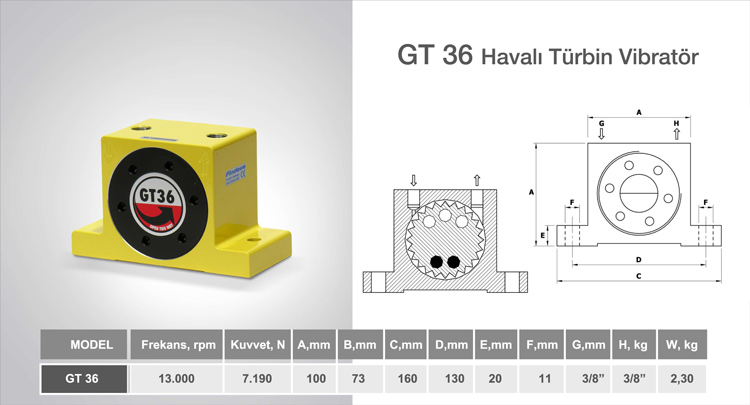

GT 36 13.000 7.190 100 73 160 130 20 11 3/8" 3/8" 2,30

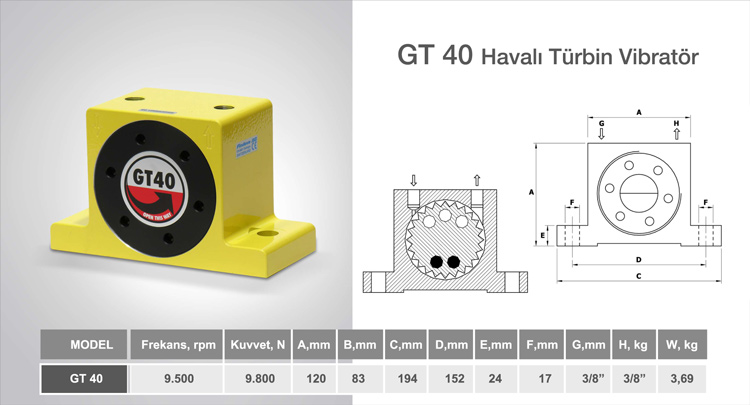

GT 40 9.500 9.800 120 83 194 152 24 17 3/8" 3/8" 3,69
GT 48 9.700 10.500 120 83 194 152 24 17 3/8" 3/8" 3,89
