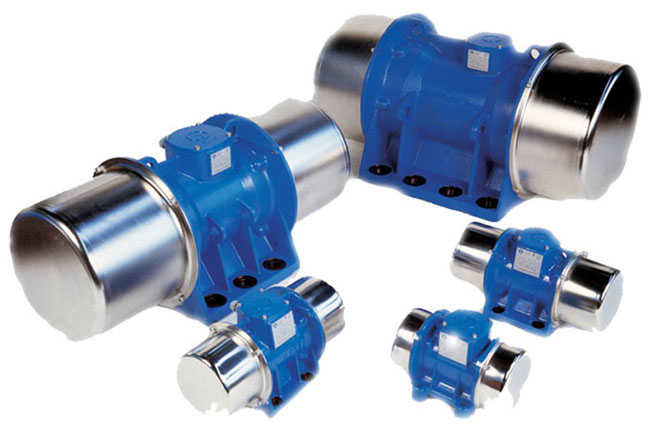

750 rpm ELEKTRİKLİ VİBRATÖR



• Power supply: standart three-phase 230/400 V, 50 Hz
• Operation Temperature from -20 to +40
• Standart mechanical protection IP66,
• Motor size in aluminyum up to size LA included, in spheroidal cast iron for all other size
• Cover weights in stainless steel AISI 304 for all range
• Weight regulation system with gratuated indicator from 0 to 100 % of the CF
• Labyrinth system for grease seal: ensures correct and LONG LIFE lubrication
• However if is possible to grease again through special grease cups from size GA included
* Protection of the stator with VACUUM or DROP BY DROP system, Insulation Class F
* Thermistor PTC 130 C at request up to size LA, standard from size MA.

Model A mm B mm C mm D mm E mm F mm N Ad G mm H mm I mm L mm M mm N mm O mm
VV 20B/8 105 140 340 167 32 13 4 28,5 30 111 204 163 82,5 91
VV 30B/8 120 170 376 205 38 17 4 40 33 111 214,5 191 91,5 97
VV 35B/8 120 170 436 210 60 17 4 22 47,5 111 243 223 115,5 118
VV 38B/8 140 190 486 230 72 17 4 25 45 111 257 241 124,5 127
VV 40B/8 140 190 557 230 72 17 4 25 45 111 257 241 124,5 162,5
VV 50B/8 155 225 600 275 79,5 22 4 28 55 111 283 271 140 168,5
VV 53B/8 155 225 600 275 79,5 22 4 28 55 111 283 271 140 168,5
VV 55B/8 155 255 658 310 103,5 23,5 4 30 60 155 335 309 160 174
VV 60B/8 180 280 730 340 106 26 4 30 65 155 369 336 173 200
VV 62B/8 180 280 790 340 106 26 4 30 65 155 369 336 173 230
VV 65B/8 200 320 736 390 111 28 4 32 75 155 381 384 189 188
VV 67B/8 200 320 836 390 111 28 4 32 75 155 381 384 189 238
VV 71B/8 200 320 854 392 111 28 4 35 75 155 403 402 199,5 247
VV 81B/8 125 380 1002 460 70 39 6 35 95 170 434,5 439 215 300



Model Mer. Kuvvet kg Moment kg mm Güç kw Ağırlık kg Akım A
VV 20B/8 113 179 0,21 19,0 0,80
VV 30B/8 200 317 0,33 23,0 1,00
VV 35B/8 281 446 0,26 47,0 0,57
VV 38B/8 450 714 0,37 60,0 1,10
VV 40B/8 619 982 0,37 70,0 1,30
VV 50B/8 956 1518 0,90 95,0 2,10
VV 53B/8 1220 1937 1,05 106,0 2,50
VV 55B/8 1462 2321 1,40 133,0 3,60
VV 60B/8 2194 3482 1,90 201,0 5,10
VV 62B/8 2700 4285 2,40 217,0 5,80
VV 65B/8 2981 4732 2,70 242,0 6,20
VV 67B/8 3600 5714 3,80 267,0 7,70
VV 71B/8 4556 7232 4,70 320,0 9,40
VV 81B/8 8000 12700 6,40 442,0 12,50
VV 141B/8 11500 18254 8,70 698,0 19,90
